Description

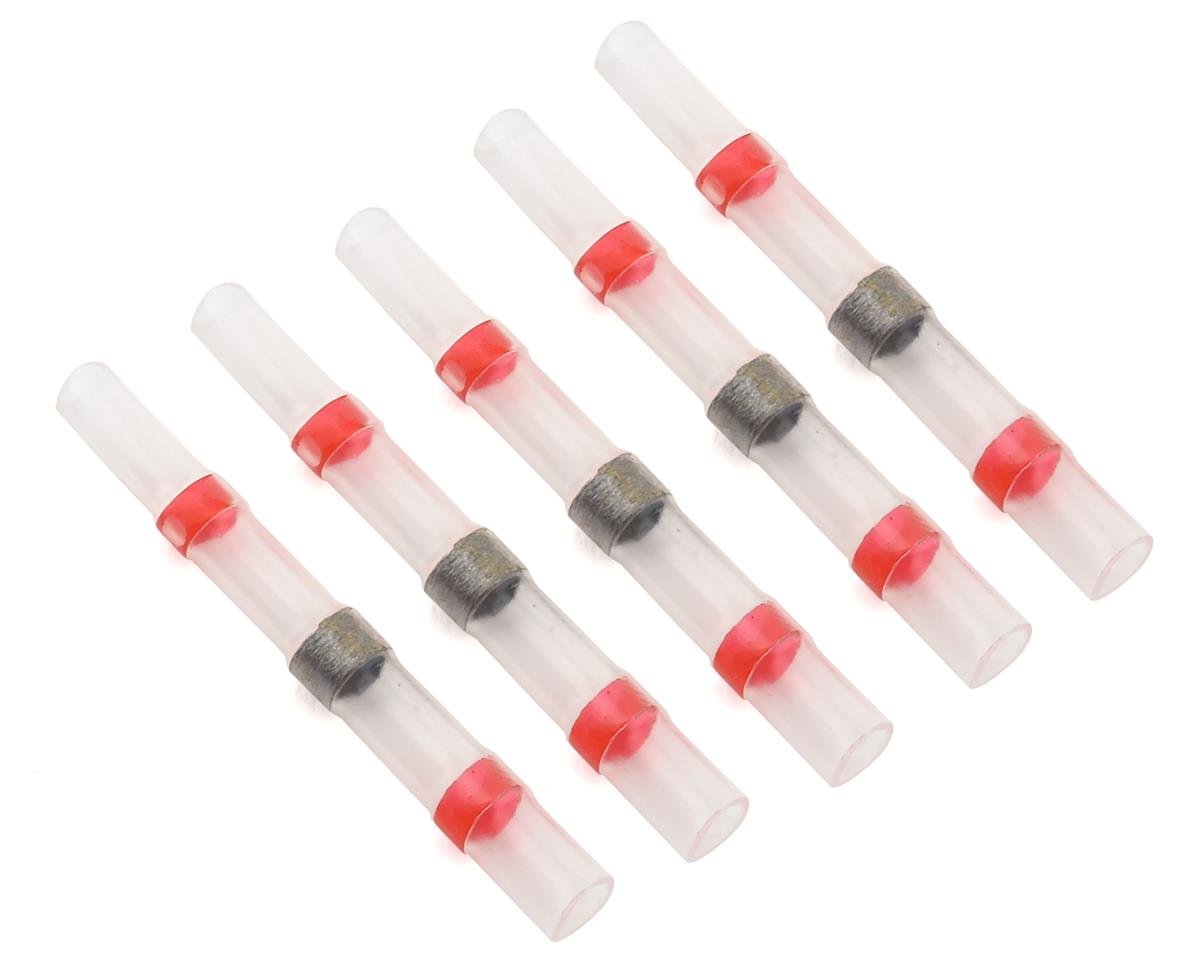

ProTek R/C 5mm EZ Solder Sleeves are heat-shrinkable solder-type butt connectors designed to make splicing 16-14awg wires simple and effective. Compatible with both surface and air applications, as well as a variety of other uses, these solder sleeves provide a reliable alternative to soldering, crimping, and conventional twist-on-style closed-end connectors.
The tubes feature a prefluxed solder ring that helps you achieve an effective low resistance connection, while the adhesive rings help to create a secure, waterproof seal on the wire. Plus, the transparent heat shrink allows you to inspect the connection, remains flexible for strain relief and insulates the junction. Package includes five sleeves.
Features:
- Easy to use: With a very simple design these solder sleeves are easy to use, and allow a single step soldered, sealed and insulated connection. Install with a heat gun, torch or lighter. Clear sleeve allows precise wire positioning for an effective connection.
- Effective: These solder sleeves perform well in almost every situation where soldering is needed. Extending battery wires, motor wires, and more.
- Durable: Materials offer a high quality solder connection with no measurable resistance, and the heat shrink material remains flexible and allows inspection of the junction.
- Waterproof: Each sleeve includes waterproofing adhesive. Once melted the wire becomes waterproof.
Specifications:
Diameter: 6mm
Compatible Wire: 16-14awg
Shrink Ratio: 2:1
Operating Temperature: -55°C to 125°CMinimum temp to shrink plastic tubing: 80° C / 176° FMinimum temp to melt solder sleeve: 138° C / 280° F
Instructions:
This product was added to our catalog on August 7, 2019
